NS350 Cabinet Installations
The Client’s Request:
Small production systems to handle 2 to 6 dives a day.
What Was Involved:

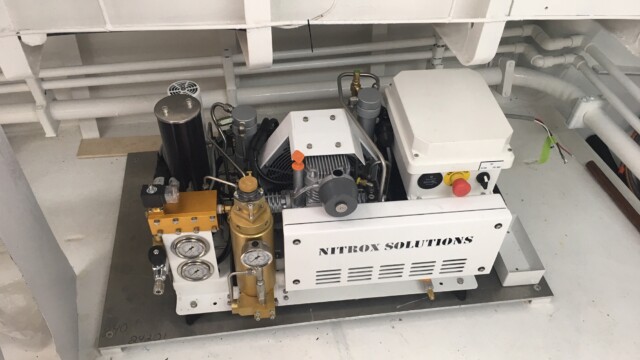

A variety of NS350 install positions.
The Team:
Moondog Dive Outfitters

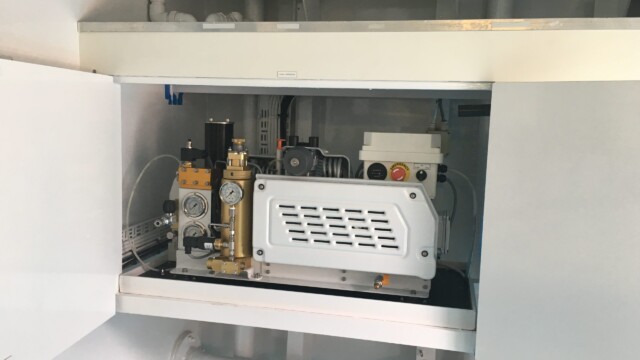

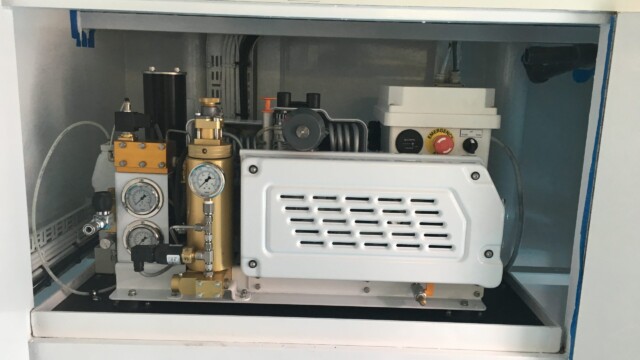

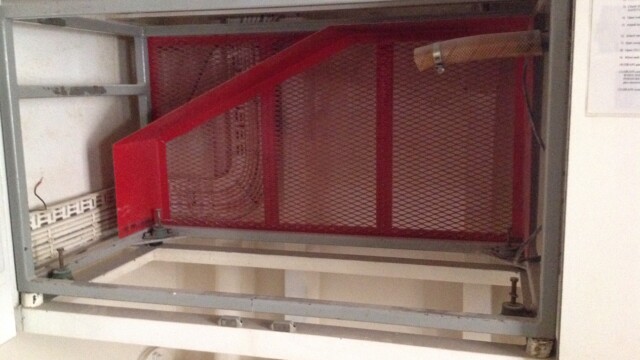

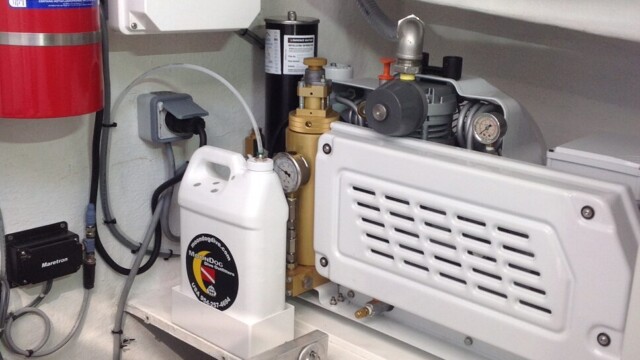

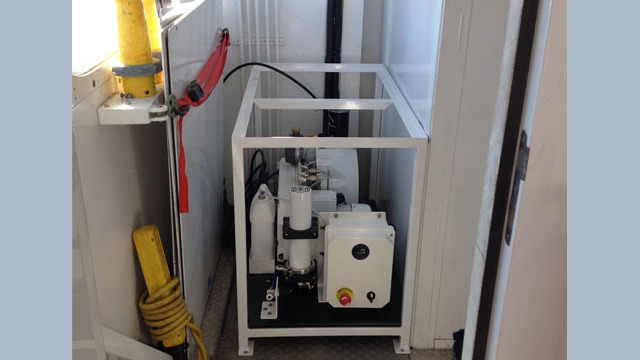

NS350 Cabinet Mount
The Client’s Request:
Replace old manual compressor with fully automated system in same cabinet space.
What Was Involved:

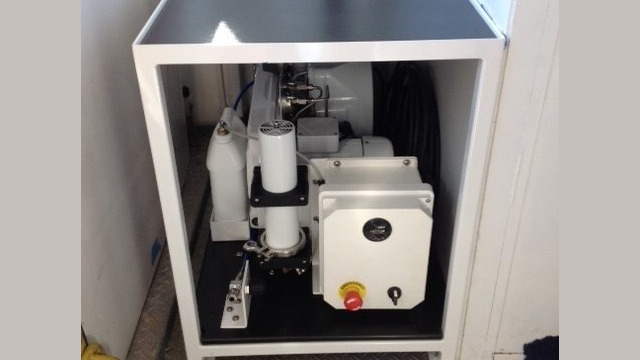

Removing an old compressor and fitting a NS350 in its existing cupboard space.
The Team:
Moondog Dive Outfitter

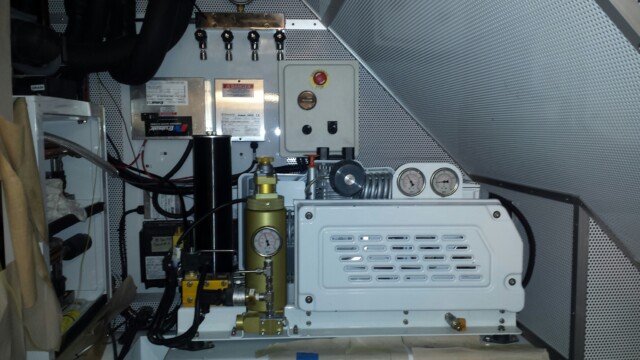

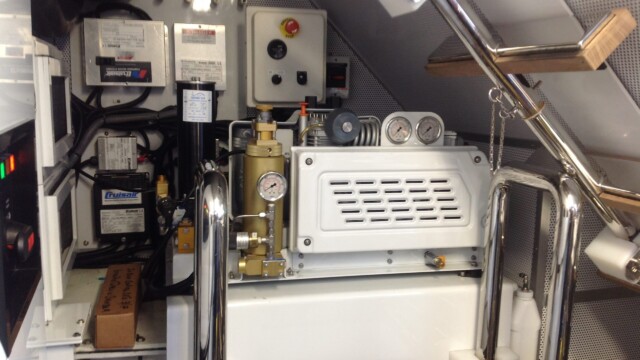

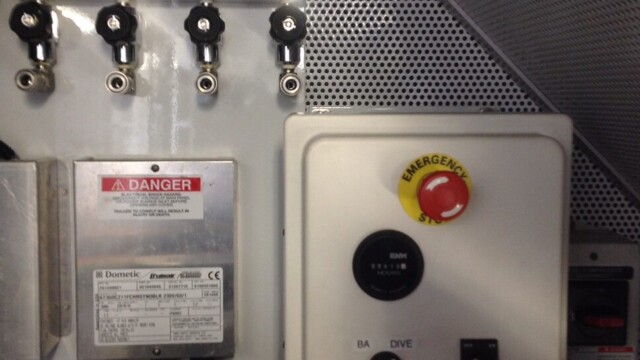

NS350 Old School Remote
The Client’s Request:
A remote position small automated compressor to fit space on a Catamaran.
What Was Involved:
Installed a fully remote NS350.
The Team:
Moondog Dive Outfitters and Nitrox Solutions

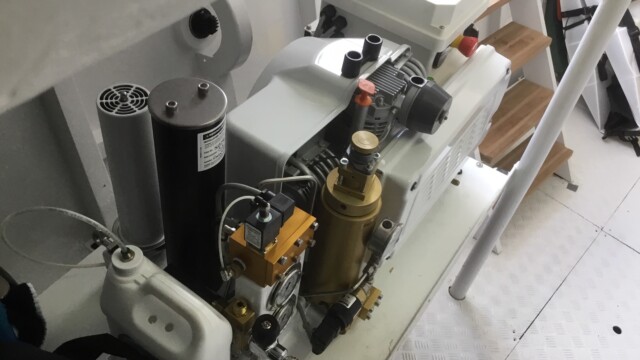

NS450 Mounts
The Client’s Request:
Provide an automated compressor system for 6 to 10 divers per day.
What Was Involved:
A variety of mount positions and configurations to meet clients requests.
The Team:
Moondog Dive Outfitters
Sailing Cat Replacement NS350 AC
The Client’s Request:
Remove manual system and replace with an automated compressor with remote fill position on deck.
What Was Involved:

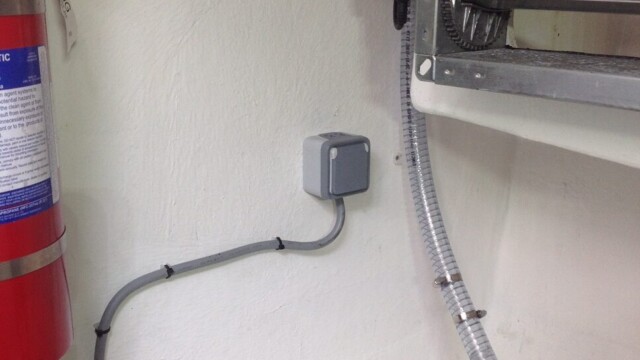

Due to space constraints, the electrical box was remote mounted to the wall, the compressor was floor mounted in the previous compressor position and a quick disconnect fill position was added to the deck area.
The Team:
Moondog Dive Outfitters

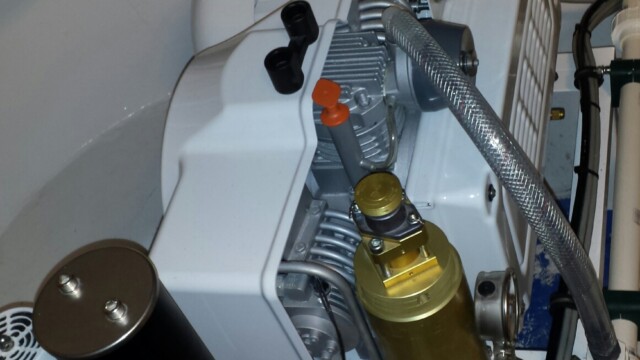

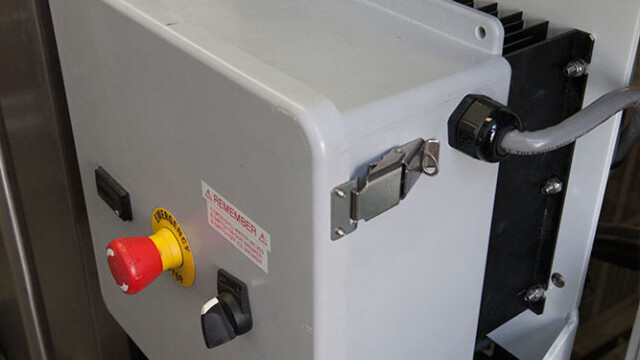

NS450 Remote Electrical Box & Fill Position
The Client’s Request:
Provide a fully automated compressor with a remote fill position for 6 to 10 divers per day.
What Was Involved:
Remote mounting NS450 allowing for easier access to electrical box and on/off switches in the compartment. A remote fill position for the furway manifold was also positioned on the opposite side of the vessel.
The Team:
Moondog Dive Outfitters

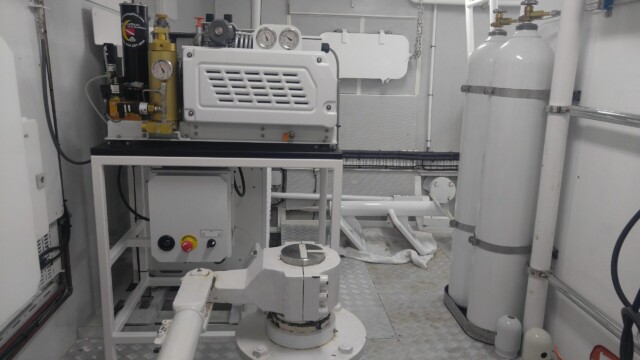

NS750 Water-Cooled Four (4) Bottle Cascade Compressor System
The Client’s Request:
Design a stand alone air/nitrox system capable of handling both dive operations, air requirements for hyperbaric operations and SCUBA fills. System incorporated into a dive locker built and designed by Moondog Dive Outfitters and A&R Marine.
What Was Involved:
A low overhead installation with remote electrical/operations box, two position remote fill positions and a remote cascade panel in the dive room.
The Team:
Moondog Dive Outfitters and Nitrox Solutions, A&R Marine, yard & vessel Build Team (Thanks to Ian and Brett!)
Remote NS450 Water-Cooled Compressor
The Client’s Request:
A fully automatic compressor that is water cooled to reduce compartment heat issues.
What Was Involved:
Remote mounting of all components due to limited space.
The Team:
Moondog Dive Outfitters and Nitrox Solutions were the install team
Horizontal NS750 with Remote Nitrox System and Cascade Panel
The Client’s Request:
Integrate a fully auto air/nitrox system into an existing space and use the vessels low pressure air system as drive gas.
What Was Involved:
Remote mounting of all equipment to fit space requirements. Addition of the existing low-pressure air system as drive gas for the nitrox production.
The Team:
Moondog Dive Outfitters and Nitrox solutions
Nitrox Solutions Redundant High Pressure Water-Cooled Nitrox System
The Client’s Request:
Design a custom nitrox system with re-dunant HP compressors, storage, air for firefighting bottles and remote fill capabilities. System was built where a sauna previously exited. Custom paint was requested.
What Was Involved:
Due to the restricted space available to load the equipment, Nitrox Solutions built the system in modules to allow for an easier load and installation of the equipment. A&R Marine supplied the fabrication of the cascade mounts and the base for the system.
The Team:
Moondog Dive Outfitters, Nitrox Solutions and A&R Marine Marketing were done by Moondog Dive Outfitters. Demo of the sauna was happily supplied by the captain and crew!
Nitrox Solutions Water-Cooled Nitrox System & Cascade Panel
The Client’s Request:
A full nitrox water cooled system with the ability to have 16 tanks filled with cascade system before start up. Also filling of SCBA’s and air for non-nitrox divers.
What Was Involved:
Integrating a vertical system in low overhead space.
The Team:
Moondog Dive Outfitters and Nitrox Solutions
Nitrox Solutions NS350 with Remote Electrical Box
The Client’s Request:
Fit a small NS350 into an existing space and have the capability of producing Grade E Air for both SCUBA and firefighting bottles. A second pressure switch was installed to allow for fire bottle filling.
What Was Involved:
Removed and remote mounted the electrical box and drain system to fit the existing shelf space.
The Team:
Moondog Dive Outfitters were the installers with fabrication by A&R Marine

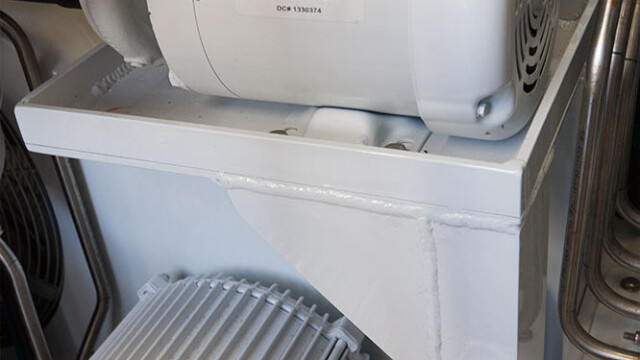

Air-Cooled NS750 with A&R Marine Cabinetry & Base Fabrication
The Client’s Request:
A fully automatic and continuous duty cascade system with the ability to upgrade to nitrox in the future. Dive gear and water sport storage.
What Was Involved:
Build a system that could be upgraded in the future to nitrox and utilize all available space for storage. A three-bottle cascade system was added and the cascade panel was integrated into the frame of the compressor to save space.
The Team:
Moondog Dive Outfitters, A&R Marine and marketed by National Marine Suppliers

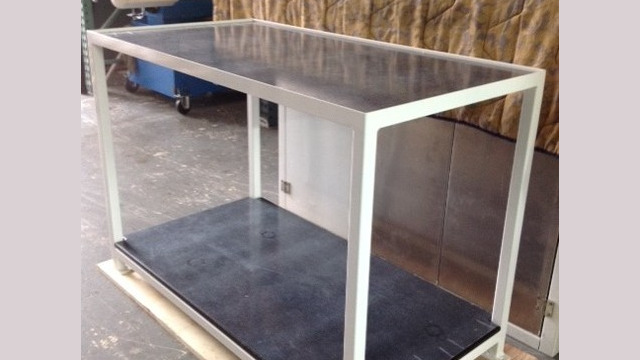

Horizontal NS450 on Table Mount
The Client’s Request:
Add a NS350 into an existing space and add storage area to a new table top and frame made by A&R Marine. SCUBA and firefighting bottles required filling.
What Was Involved:
A&R Marine constructed a frame and removable table top to allow servicing. The compressor had its electrical box and drain system remote mounted to fit the space. A dual pressure switch was added to allow switching between SCUBA and SCUBA fills.
The Team:
Moondog Dive Outfitters and A&R Marine
Nitrox Solutions (stand-alone) Water-Cooled Nitrox System
The Client’s Request:
Add a nitrox system in the old space of an air system. Utilizing the existing storage bottles and building a remote cascade cabinet in a separate compartment, to match the existing cabinet.
What Was Involved:
Building the system required fitting the components to accommodate the sloping aft bulkhead and to fit an existing compressor space. The fill panel was placed in a new cabinet made by A&R Marine to match the cabinet on the starboard side – this was in a separate compartment.
The Team:
Moondog Dive Outfitters, Nitrox Solutions and A&R Marine were the installers.
